- STANDARDS: UL Recognized and Flame Retardant per UL510A Standard
- HIGH TEMPERATURE TAPE LENGTH: Bertech's High Temperature Tapes are 2.5 mil thick which are made of 1 mil Polyimide film with 1.5 mil silicone adhesive. Our Polyimide High Temperature Tape comes on 3 in. core and is a 36 Yd. Roll or 108 Ft. or 32.9 M
- HIGH TEMPERATURE TAPE INFO: These High Temp Polyimide Masking tapes are reliable with a unique combination of electrical, thermal, chemical and mechanical properties that withstand extreme temperatures, vibration, and other demanding environments
- HIGH TEMPERATURE TAPE APPLICATIONS: 3D Printing, Aerospace, Auto and Electronic Assembly, Masking circuit boards, Heat Press, High Temp Powder Coating, Auto Sensor and Manifolds, Soldering, Fiber Optics, Sublimation for Heat Press, and Solar Panels
- HIGH TEMPERATURE TAPE PROTECTION: Bertech's High Temp Heat Resistant Tape uses a Polyimide Film and has a silicone adhesive which is perfect for protecting sensitive printed circuit board (PCB) components when wave soldering and other heat transfer

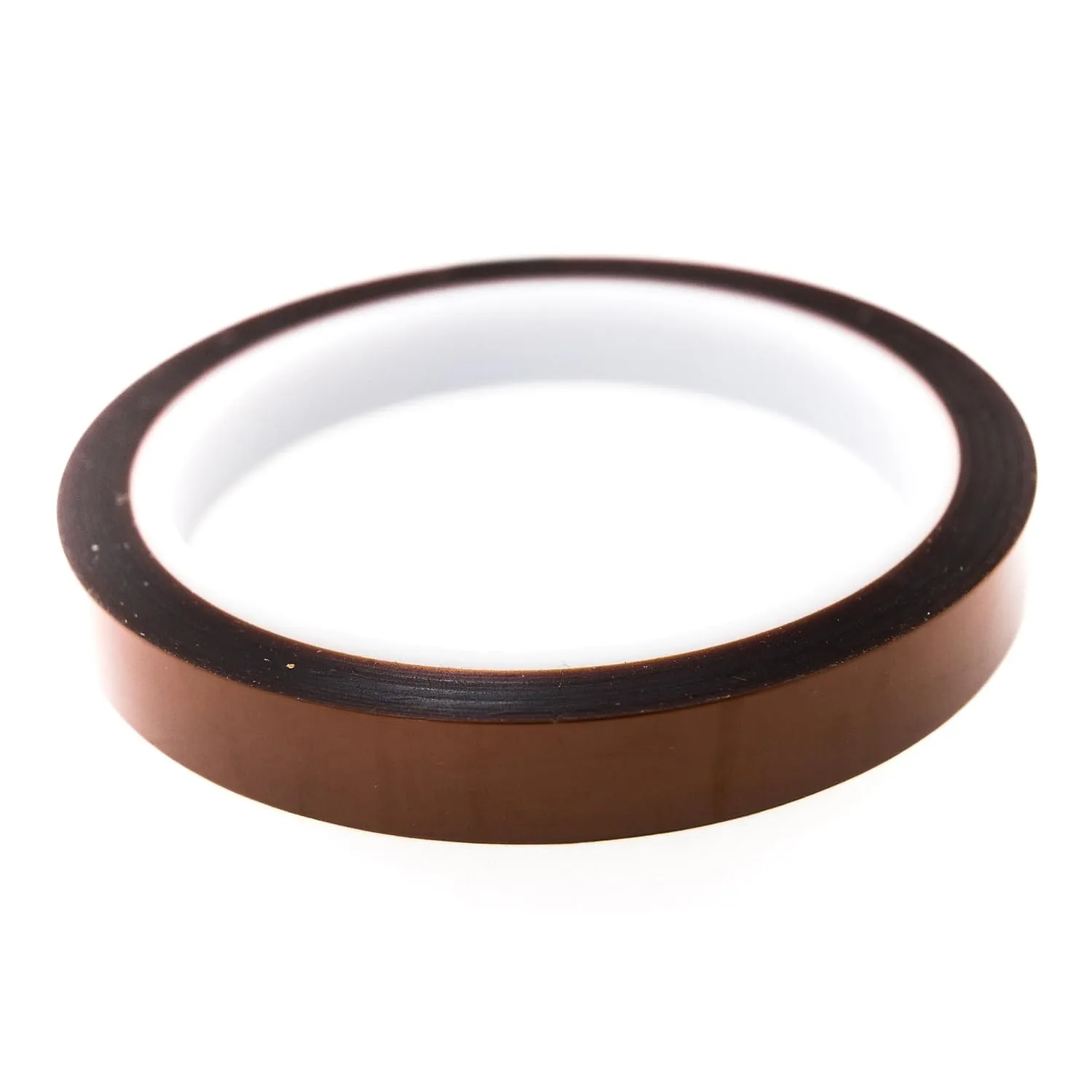

Bertech High Temperature Tapes are also known as Polyimide Masking Tapes and have an operating temperature of -73°C (-100°F) to 260°C 500°F). Bertech's High Temperature Tapes are 2.5 Mil thick which is made of 1 mil thick Polyimide film with 1.5 mil thick silicone adhesive. These High Temperature Polyimide Masking tapes are reliable and durable with a unique combination of electrical, thermal, chemical, and mechanical properties that withstand extreme temperatures, vibration, and other demanding environments. Our High Temperature Tapes have excellent resistance to acids, oils, and solvents. Our High Temperature Polyimide Masking Tapes are packaged on a 3" core and are 36 yards long. Our High Temperature Polyimide Masking Tapes are used by some of the largest companies in the World, so you can be assured that you're getting the best quality. Color: Amber Adhesion Type: Silicone Film Thickness: 1 Mil Adhesive Thickness: 1.5 Mil Total Thickness: 2.5 Mil Tensile Strength: 30 lbs./inch Elongation: 55 % Operating Temperature: -73°C (-100°F) - 260°C (500°F) Dielectric Strength: 6,500 Volts Our High Temperature Polyimide Masking Tapes are also known as Heat Tape, Heat Resistant Tape, Heat Transfer Tape, Thermal Tape, Sublimation Tape, and Heat Vinyl Press Tape. Our High Temperature Resistant Tape is also known as the generic version of Kapton tape.
- Product Dimensions : 1296 x 0.75 x 5 inches; 2.08 ounces
- Date First Available : December 18, 2013
- Manufacturer : Bertech
- Country of Origin : China
